Chapter 1 Product Overview
1.1 Scope of application
YNH-732 is a multi-functional intelligent motherboard, commonly used in ARM PC, large-screen splicing, animation games,Conference tablets, edge computing, industrial computers, TV player boxes, cloud servers, smart NVRs and other fields.
1.2 Product Overview
YNH-732 adopts Rockchip RK3588 new generation flagship octa-core 64-bit processor.It comes with 6TOPS computing power NPU and is equipped with Android12.0/Ubuntu20.04 system (kernel is Linux4.19), GPU uses Mali-G610 MC4, with outstanding performance and high cost performance. Support 8K Video codec, 8K display output, built-in multiple display interfaces, support for multi-screen display; rich high-speed Interface (PCIe, TYPE-C, Gigabit Ethernet), easy to expand.
1.3 Product Features
◆ High definition. Supports up to 8K decoding and various HDMI displays.
◆ Support multiple upgrade methods such as remote, USB cable connected to computer, U disk OTA package, etc.
◆ U disk, TF card configuration screen parameters, plug and play, perfect support for all sizes, all resolution displays.
◆ Perfectly supports mainstream industry release software and industry application software, ready to use.
◆ Perfectly supports infrared, optical, capacitive, resistive and other mainstream touch screens, and supports driver-free touch screens HID configuration, no debugging required.
◆ Perfectly supports the industry's mainstream USB/serial devices, printers, card readers, password keyboards, fingerprint scanners, Camera, ID card recognition, QR code scanner, etc., provide demo test program.
◆ Highly integrated. With 6 USB ports, 4 serial ports, WIFI/RJ45/4G/5G and other networking options.
◆ Built-in PCI-E module socket, supports various PCI-E modules such as YUGE and Quectel to access the Internet.
Chapter 2 Basic function list
| Main hardware indicators |
| CPU |
RK3 588 , octa -core, 2.4 GHz |
| Memory |
Standard 4G (8G/16G optional) LPDDR4 |
| Internal memory |
EMMC 64G (32G/128G etc. optional) |
| Decoding resolution |
Support up to 8K |
| operating system |
Android12.0/Ubuntu20.04 system (kernel is Linux4.19) |
| Network support |
Ethernet, 1000M |
| 2.4G+5G dual-band wifi6 module |
| Support 4G/5G, connect to PCIE 4G/5G module |
| USB interface |
6 ports, 2 USB 3.0 (one of which is OTG ), 4 USB 2.0 |
| Serial Port |
4, 2 RS232, 1 RS485, 1 TTL |
| HDMI output |
1 , up to 8K@60fps output |
| HDMI IN |
HDMI input interface, one |
| RTC Real Time Clock |
support |
| Timer switch |
support |
| System Upgrade |
Support U disk/ T card / network upgrade |
Chapter 3 Appearance Interface Description

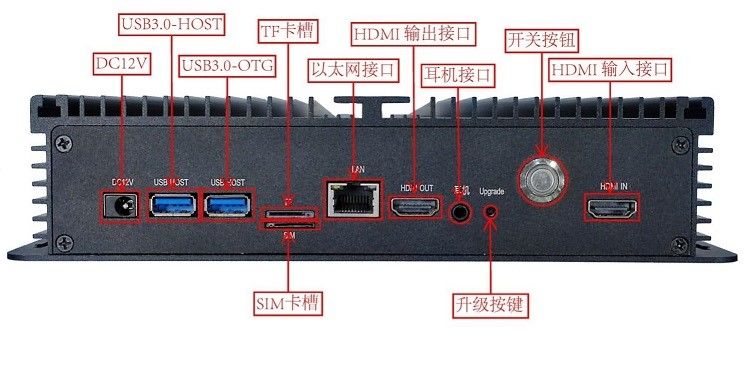

Front view
Back view
Dimensions
Item List:
1. 12V/2A adapter
2. One industrial control box
3. A Wifi antenna
4. One 4G antenna
5. Four fixing screws M4X10
