RK3588 AI Edge Computing Box 1000M Two Ethernet Industrial Personal Computer AI Boxes

RK3588 AI edge computing box 1000M Two Ethernet industrial personal computer AI boxes NPU 6Tops 8K display

Product Description:
The YNH-733 edge computing box uses the Ruixin micro RK3588 eight core 64 bit processor. The chip has its own 6TOPS computing power, the main frequency is 2.4GHz, and it is equipped with the Android12.0/Ubuntu 20.04/Debian11 system (the core is Linux5.10). The GPU uses the Mali-G610 MC4. It supports 8K video codec and 8K display output; Rich high-speed interfaces (TYPE-C, RS485), easy to expand, all aluminum alloy shell, conducive to heat dissipation; Adopting aviation plug-in interface with good sealing performance; External cameras can be used to achieve facial detection, facial recognition, attribute detection, etc It can be used in industrial production, edge computing, personnel detection, event monitoring, attribute detection and other scenarios

Product Features:
1. Adopting Ruixin Micro RK3588 (Cortex-A76+Cortex-A55) eight core 64 bit processor, with a clock speed of 2.4GHz and NPU computing power of 6.0T

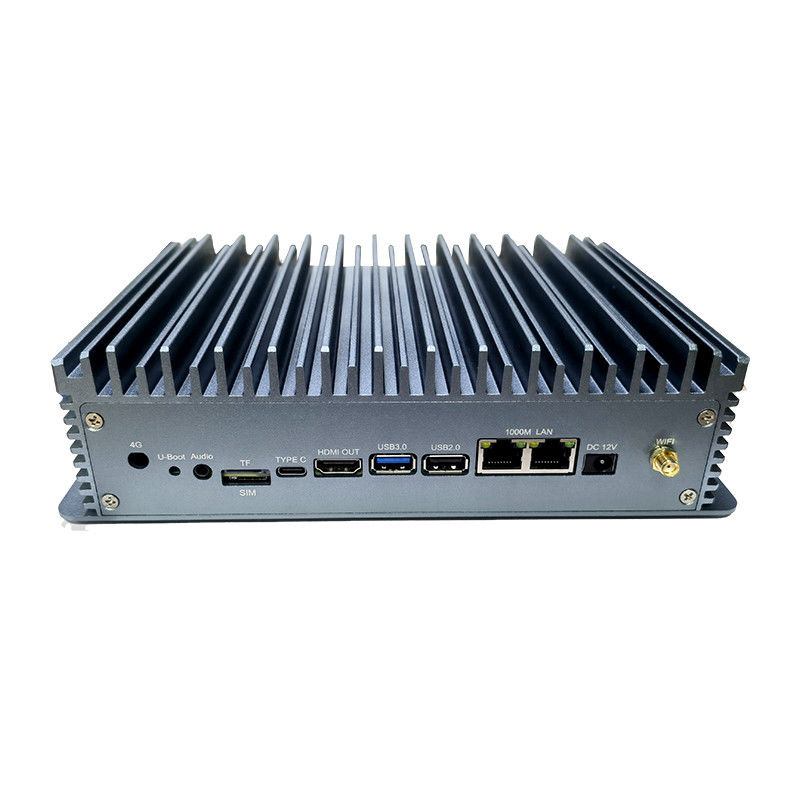

2,1 HDMI, 1 HDMI IN, 2 USB 3.0 (one of which is TYPE-C), 1 USB 2.0, 2 GPIO, 1 DEBUG, 1 RS485, 2 relays, 1 TF, 1 SIM, 1 audio output
3. 2 1000M Ethernet, 2.4G+5G dual band WiFi, 6. 4G/5G internet access, Bluetooth 5.4
4. Android 12.0/Ubuntu 20.04/Debian 11.0 system (with Linux 5.10 kernel)
5,4G (8G/16G optional) LPDDR4,32GB (64G/128G optional) EMMC
6. Protection level IP56, working temperature -20 ℃~60 ℃, working humidity 10%~90%
7. Support various algorithms, such as event detection, attribute detection, personnel detection, etc
8. Support system upgrade through USB flash drive, TF card, network and other methods
9. edge computing Box size: 270 mm * 150 mm * 62 mm

FAQ for RK3588 Embedded System Board:

Q: Are you trading company or manufacturer?
A: We are original manufacturer Of Embedded System Board

We can do OEM/ODM business.

Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
