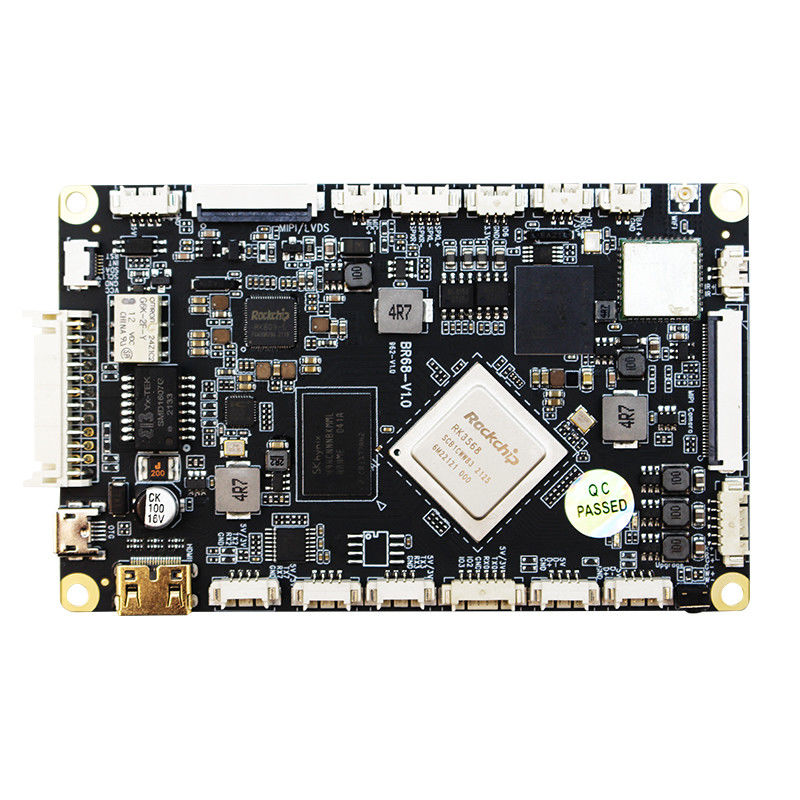

Rockchip RK3568 Facial Recognition Motherboard Access Control Linux Embedded Board

Rockchip RK3568 Facial recognition motherboard Access control Development board Linux Embedded board

Product Description
YNH-962 uses Ruxin Micro RK3568 quad-core 64-bit processor, the chip comes with 1.0T computing power, is equipped with Android 11.0/Ubuntu20.04 system (core is Linux4.19), the main frequency is up to 2.0GHz, outstanding performance, and cost-effectiveness. The GPU uses Mali-G52, supports 4K 60fps H.265/H.264/VP9 video decoding, and supports 1080P 100fps H.265/H.264 video encoding. For the application scenarios of face recognition function, the hardware acceleration of face algorithms is optimized, which can achieve smooth operation of various face recognition applications; supports adaptive transmission of two modes such as Weigan 26 and 34, ttl/485 serial ports and other communication interface expansion; multiple display output, with its own WIFI-2.4G module, BT-5.0, and wired network; comes with its own hardware watchdog, suitable for face recognition terminals, face payment terminals and security terminal products. The product is small in size and is easy to embed into the entire machine equipment. It can be used in gates, access control machines, and face recognition machines.

Product Features
1. Adopt Rockchip RK3568 Cortex-A55 quad-core processor, with a main frequency of 2.0GHz and a computing power of 1.0T
2. MIPI/LVDS/screen EDP output, HDMI 4K output; MIPI binocular/USB binocular (infrared + visible) camera
3, 4 USB, 5 serial ports (4 TTL, 1 232 or 1 485), 6 I/O ports, supports Wiegand 26/34 adaptive transmission
4. Supports 100-megabit Ethernet, Bluetooth 5.0, default WiFi 2.4G (optional 2.4G+5G dual-band wifi 6)
5. Android 11/Ubuntu 20.04 (kernel is Linux4.19) operating system, supports system customization, and provides API interface code
6, LPDDR4 2G (4G/8G optional), EMMC 8G (16G/32G/64G/128G optional)
7, motherboard size: 103mm*64mm
