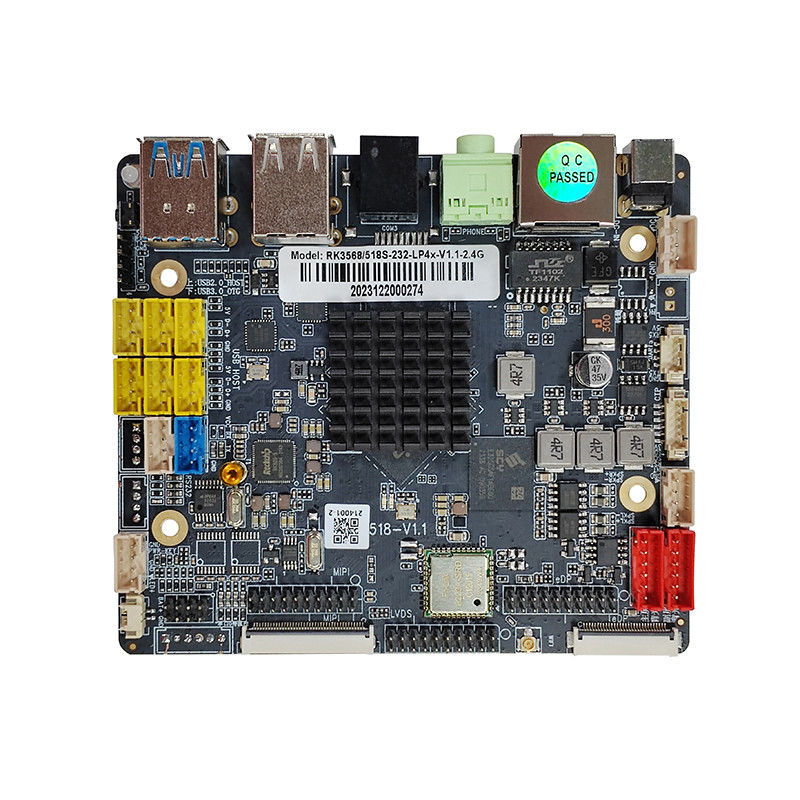

RK3568 Board POS Cash Register Motherboard Multi Screen Display Develop Board Android 11.0 Embedded Pcba Mainboard
Product Description:
The YNH-518 is equipped with the Rockchip RK3568 quad-core processor, featuring an integrated 1.0T NPU for processing power. It runs on Android 11.0/Ubuntu 20.04 operating systems (with a Linux 4.19 kernel) and boasts a high main frequency of up to 2.0GHz, offering outstanding performance and cost-effectiveness. The GPU is a Mali-G52, supporting 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/H.264 video encoding. It supports multiple video outputs and inputs, has a variety of interfaces, and can expand to support multiple peripherals. This product is primarily used in cash registers and POS devices.
Product Features:
1. Equipped with Rockchip RK3568 Cortex-A55 quad-core processor with a main frequency up to 2.0GHz and 1.0T NPU processing power. 2. Supports LVDS, MIPI, eDP output. 3. Offers 10 USB ports (including 1 USB 3.0), 7 serial ports (5 with 232, 1 TTL, 1 Debug), 1 cash drawer, and 3 I/O ports. 4. Features 100M Ethernet, 2.4G/5G WiFi 6 module, supports Bluetooth 5.0, and 4G networks. 5. Runs on Android 11.0/Ubuntu 20.04 operating system, supports system customization, and provides API interface code. 6. Comes with LPDDR4/LPDDR4x 2G (options for 4G/8G available), EMMC 16G (options for 8G/32G/64G/128G available). 7. The motherboard dimensions are 103mm*90mm.
