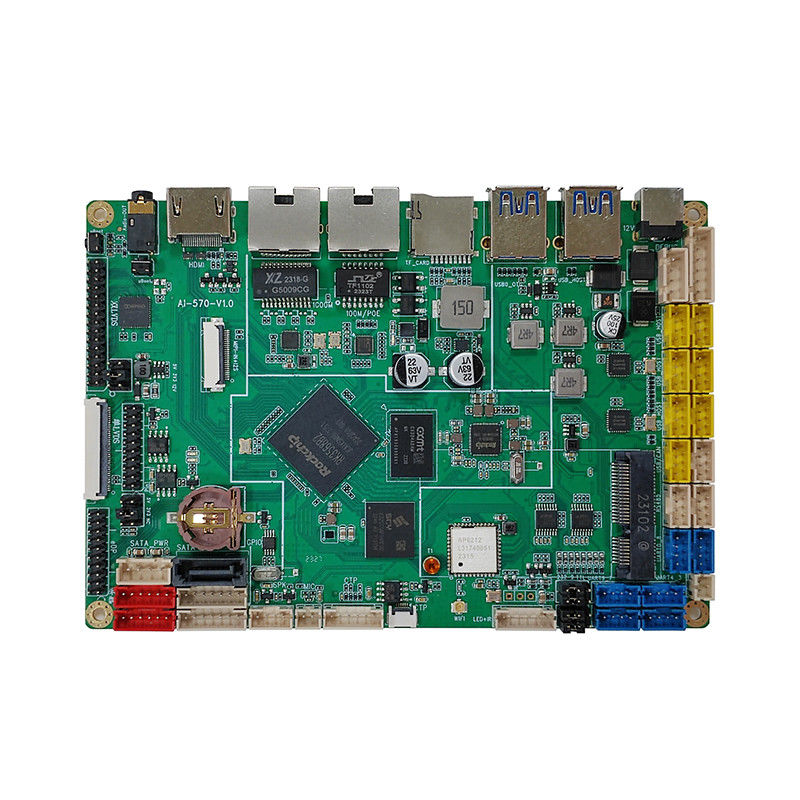

Rockchip RK3568 Industrial Develop Board Advertising Machine Self-Service Terminal Motherboard 2.0GHz Gigabit Ethernet
Product Description :
The YNH-570 utilizes the Rockchip RK3568 quad-core processor, with an integrated 1.0T computing power NPU, running Android 11.0/Ubuntu 20.04 systems (kernel based on Linux 4.19). It features a high main frequency of up to 2.0GHz, offering outstanding performance and high cost-effectiveness. The GPU uses the Mali-G52, supporting 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/H.264 video encoding. It supports multiple video outputs and inputs, rich interfaces, and various peripheral expansions, suitable for intelligent industrial control products and smart display terminal products, such as industrial control hosts, intelligent self-service terminals, and advertising machines.
Product Features:
1. Utilizes the Rockchip RK3568 Cortex-A55 quad-core processor, with a main frequency of up to 2.0GHz and 1.0T NPU computing power. 2. Two LVDS, HDMI, eDP, MIPI, HDMI IN inputs available for configuration. 3. Nine USB ports (including one USB 3.0), eight serial ports (six 232, one 485, one DEBUG), and eight I/Os. 4. One 1000M Ethernet, one 100M Ethernet (POE charging), Bluetooth 5.2, default WiFi 2.4G (optional 2.4G+5G dual-band WiFi 6), and 4G network. 5. Android 11.0/Ubuntu 20.04/(kernel based on Linux 4.19), supports system customization, and provides API interface code. 6. LPDDR4 2G (options for 4G/8G), EMMC 32G (options for 16G/64G/128G/256G). 7. The mainboard dimensions are 148mm*101mm.
