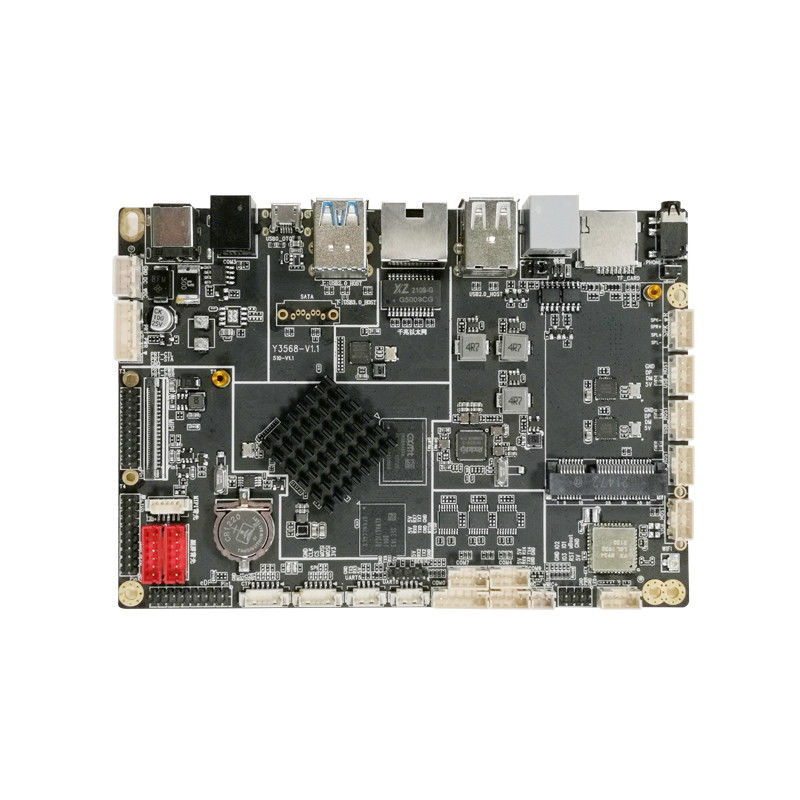

Android RK3568 Board LVDS EDP HDMI MIPI Output Interface Embedded ARM Motherboard

RK3568 Android motherboard POS cash register motherboard multi-screen display LVDS EDP HDMI MIPI embedded ARM

Product Description:

The YNH-510 features a Rockchip RK3568 quad-core 64-bit processor, with a built-in 1.0T NPU, running Android 11.0/Ubuntu 20.04 systems (Linux 4.19 kernel). The processor has a high frequency of up to 2.0GHz, offering outstanding performance and high cost-effectiveness. It uses a Mali-G52 GPU, supporting 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/H.264 video encoding. It supports multiple video outputs and inputs, has a rich interface, and supports various peripheral expansions. It is mainly used in cash registers and POS devices.

Product Features:

1. Features Rockchip RK3568 Cortex-A55 quad-core processor, with a frequency up to 2.0GHz and NPU processing power of 1.0T. 2. Supports 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/H.264 video encoding. 3. Supports dual LVDS/MIPI/dual eDP screen output, HDMI output (optional). 4. 9 USB ports (1 USB 3.0), 7 serial ports (2 TTL, 5 232), 3 I/O ports, 1 cash drawer. 5. Gigabit Ethernet, 2.4G/5G WiFi 6, Bluetooth 5.0, 4G network (PCIE 4G module). 6. Android 11.0/Ubuntu 20.04 operating system (Linux 4.19 kernel) with API interface code. 7. LPDDR4/LPDDR4x 2G (4G/8G optional), EMMC 16G (8G/32G/64G/128G optional).
