Product Description:
Scope of Application
AI - 530 is a commercial display intelligent motherboard, generally applicable to: digital signage, self-service terminals, etc.
Product Overview

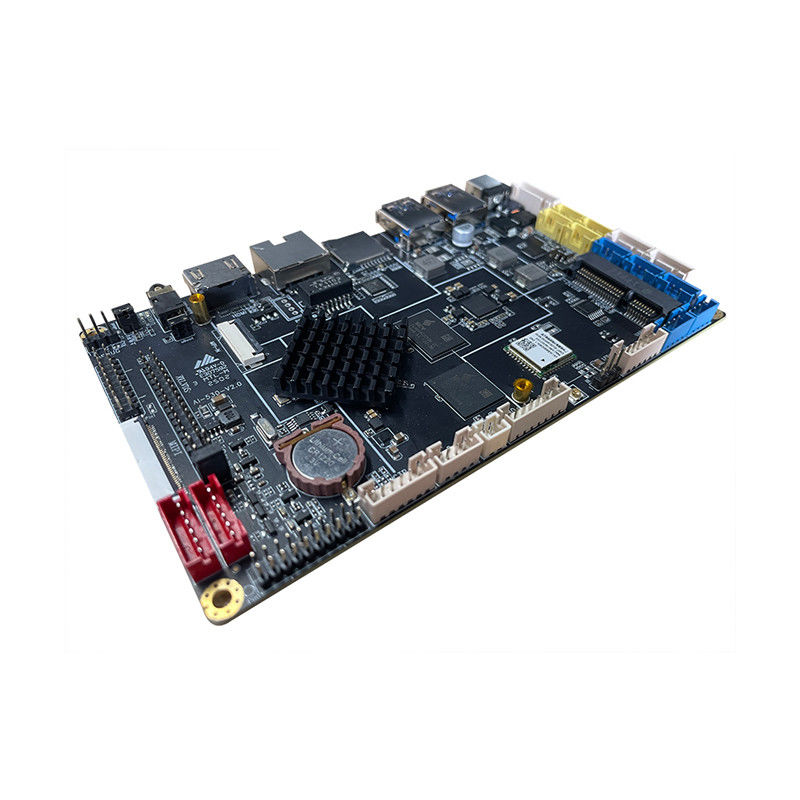

AI - 530 uses Rockchip RK3568 Quad-core processor, the chip comes with 1.0 T computing power NPU, equipped with Android11.0 /Ubuntu20.04 /Debian 11.0 system (kernel is Linux 4.19), main frequency up to 2.0 GHz, outstanding performance, high cost performance.
GPU uses Mali- G52, supports 4K 60fps H.265/H.264/VP9 video decoding, supports 1080P 100fps H.265/H.264 video encoding. Supports multi-channel video output and input, rich interfaces, and supports a variety of peripheral expansions. It is your best choice in the digital signage and self-service terminal industry.
Features:
High definition. Supports up to 4K decoding and dual-channel LVDS / EDP / MIPI / HDMI screen output.
Multiple upgrade methods are available, including remote access, U disk insertion, TF card setup, USB cable connection to a computer, and more.
Configure screen parameters via U disk or TF card for seamless plug and play functionality that perfectly supports displays of all sizes and resolutions.
Seamlessly integrates with mainstream industry release software and industry-specific applications, making it ready for immediate use.
Supports a variety of mainstream touch screens - infrared, optical, capacitive, resistive, etc. - with driver-free touch screen HID configuration, eliminating the need for manual debugging.
Perfectly supports a wide range of industry-standard USB/serial port devices, such as printers, card readers, password keyboards, fingerprint readers, cameras, ID card readers, QR code scanners, etc., offering demo test programs for seamless integration.
Highly integrated system featuring 6 USB ports, 8 serial ports, 4 IO ports, as well as networking options including WIFI, RJ45, and 4G.
Includes a built-in PCI-E 4G module socket, supporting various PCI-E 4G modules like Yuge and Quectel for internet connectivity.
Applications:
The YNH 530 Commercial Display Debian Motherboard is a versatile and reliable product that is perfect for various business display applications. With its origins in Shenzhen and UL certification, this motherboard guarantees high quality and performance. The minimum order quantity is 100 units, with a price range of 60 to 80 USD per unit and packaging details of 100 pieces per box.
Businesses looking to enhance their display systems can benefit greatly from the YNH 530 motherboard. It is suitable for a wide range of product application occasions and scenarios:
- Digital Signage: The YNH 530 motherboard is ideal for powering digital signage displays in retail stores, restaurants, airports, and other public spaces. Its decoding resolution supports up to 8K, ensuring crisp and clear visuals for advertising and information display.
- Interactive Kiosks: Businesses can utilize the YNH 530 motherboard to create interactive kiosks for self-service applications. Whether in shopping malls, museums, or information centers, this motherboard can handle the demands of interactive touch displays.
- Video Walls: The motherboard's multiple LCD output options, including LVDS, MIPI, EDP, and HDMI, make it perfect for driving video walls in command centers, control rooms, and entertainment venues. Its compact dimensions of 140.5 x 85 x 1.6 mm enable seamless integration into video wall setups.
Operating on Android 11.0, Ubuntu 20.04, or Debian 11.0 with a Linux4.19 kernel, the YNH 530 motherboard offers flexibility in choosing the operating system that best suits the business's needs. Its Rockchip RK3568 quad-core CPU running at 2.0 GHz ensures smooth performance for demanding display applications.
With a delivery time of 5-8 days and payment terms of T/T, businesses can quickly deploy the YNH 530 motherboard in their commercial display setups. Whether it's for a single standalone display or a networked system of multiple screens, the YNH 530 motherboard is a reliable choice for powering Business Display Debian Circuits.
Customization:
Product Customization Services for the Commercial Display Debian Motherboard:
Brand Name: YNH
Model Number: 530
Place of Origin: Shenzhen
Certification: UL
Minimum Order Quantity: 100
Price: 60~80 USD
Packaging Details: 100pcs per box
Delivery Time: 5-8 days
Payment Terms: T/T
CPU: Rockchip RK3568, Quad-core, 2.0 GHz
RTC Real Time Clock: The Battery Supports Time Memory For 3 Years And Supports Timed Power On And Off
USB interface: 6, 2 USB3.0 (One Of Which Is OTG), 4 USB 2.0 HOST
Serial Port: 8; 2 RS232 Serial Ports (optional TTL Serial Port), 5 TTL Serial Ports (UART3 Can Be Equipped With RS485 Serial Port), 1 DEBUG Debug Serial Port (optional TTL Serial Port)
Speaker output: Supports Single Channel 4R/20W Speaker
Support and Services:
The Commercial Display Debian Motherboard product offers comprehensive Product Technical Support and Services to ensure optimal performance and functionality. Our dedicated team of experts is available to assist with any technical issues, troubleshooting, and maintenance requirements.
