Product Description:
1.1 Scope of application
The YNH-3588 box is a super computing box, commonly used in ARM PC, large-screen splicing, animation games, conference tablets, edge computing, industrial computers, TV player boxes, cloud servers, smart NVRs and other fields.
1.2 Product Overview

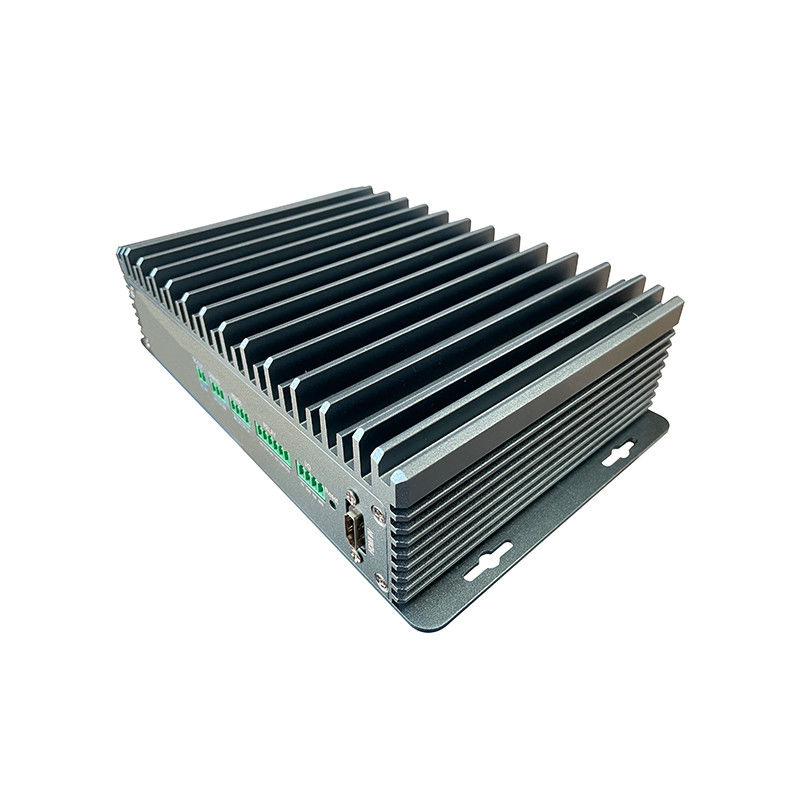

The YNH-3588 box uses Rockchip RK3588, a new generation flagship octa-core 64-bit processor. The chip comes with a 6TOPS computing power NPU, and is equipped with Android12.0/Ubuntu20.04/Debian11 system (the kernel is Linux5.10). The GPU uses Mali-G610 MC4, which has outstanding performance and high cost performance. It supports 8K video encoding and decoding, 8K display output, and has built-in multiple display interfaces; rich high-speed interfaces (TYPE-C, Gigabit Ethernet), easy to expand, all-aluminum alloy shell, conducive to heat dissipation, and uses aviation plug-in interface with good sealing; external cameras can be connected to achieve face detection, face recognition, attribute detection, etc.
Features:
- Product Name: Computing Power Box
- Operating System: Android 12.0/Ubuntu 20.04/Debian 11 System (kernel is Linux 5.10)
- System Upgrade: Support U Disk/T Card/Network Upgrade
- RTC Real Time Clock: Support
- Power Supply: DC12V – 5A (±10%)
- Operating Temperature: -20℃~60℃ (thermostat optional)
Technical Parameters:
| Operating temperature |
-20℃~60℃ (thermostat Optional) |
| NPU |
Support 6Tpos Computing Power |
| GPU |
Mali-G610 MC4 |
| Power supply |
DC12V – 5A (±10%) |
| USB interface |
3, 2 USB3.0 ( One Of Which Is TYPE-C- OTG ), 1 USB2.0 |
| Memory |
Standard 4G (8G/16G Optional) LPDDR4 |
| HDMI output |
1 , Up To 8K@60fps Output |
| Network support |
Support 4G/5G, Connect To PCIE 4G/5G Module |
| RTC Real Time Clock |
Support |
| Multimedia |
Support 8K Video And Multi-channel 4K Video Decoding, Support Multi-channel 4K Video Encoding |
Applications:
The YNH 733-Box Computing Power Box is a versatile and powerful device suitable for a wide range of product application occasions and scenarios. This Workstation Micro Power Box is designed to meet the computing needs of various industries and can be utilized in different settings.
One of the key application scenarios for the YNH 733-Box is in industrial automation. With its high computing power and reliable performance, this Micro Computer Power Unit can be integrated into manufacturing systems, robotic applications, and control systems to enhance efficiency and productivity.
Another important area where the YNH 733-Box excels is in IoT (Internet of Things) applications. As a compact and efficient Computer Micro Power Box, it can be used in smart home devices, security systems, and other IoT solutions to enable connectivity and data processing.
Furthermore, the YNH 733-Box is ideal for edge computing applications. Its robust design and powerful NPU (6Tpos Computing Power) make it suitable for tasks such as real-time data analysis, AI inference, and image processing at the edge of the network.
Moreover, the YNH 733-Box can be deployed in digital signage solutions, kiosks, and retail environments where reliable performance and compact size are essential. Its GPU (Mali-G610 MC4) ensures smooth graphics rendering for multimedia content.
Overall, the YNH 733-Box Computing Power Box is a versatile and reliable device that caters to a variety of product application occasions. Whether it's in industrial automation, IoT, edge computing, or digital signage, this device offers high computing power, efficient operation, and a range of optional features to meet specific requirements.
Customization:
Product Customization Services for the Computing Power Box:
Brand Name: YNH
Model Number: 733-Box
Place of Origin: Shenzhen
Certification: UL
Minimum Order Quantity: 100
Price: 100-200 USD
Packaging Details: 100pcs per box
Delivery Time: 5-8 days
Payment Terms: T/T
multimedia: Support 8K Video And Multi-channel 4K Video Decoding, Support Multi-channel 4K Video Encoding
CPU: RK3588 , Cortex-A76+Cortex-A55 Octa-Core, Main Frequency 2.4 GHz
Memory: Standard 4G (8G/16G Optional) LPDDR4
Device size: 235 Mm*150 Mm* 62.5 Mm (length*width*height)
Operating temperature: -20℃~60℃ (thermostat Optional)
Support and Services:
Our Product Technical Support and Services for the Computing Power Box include:
- Installation guidance and troubleshooting assistance
- Software updates and compatibility support
- Warranty coverage and repair services
- Online resources and documentation for product usage
