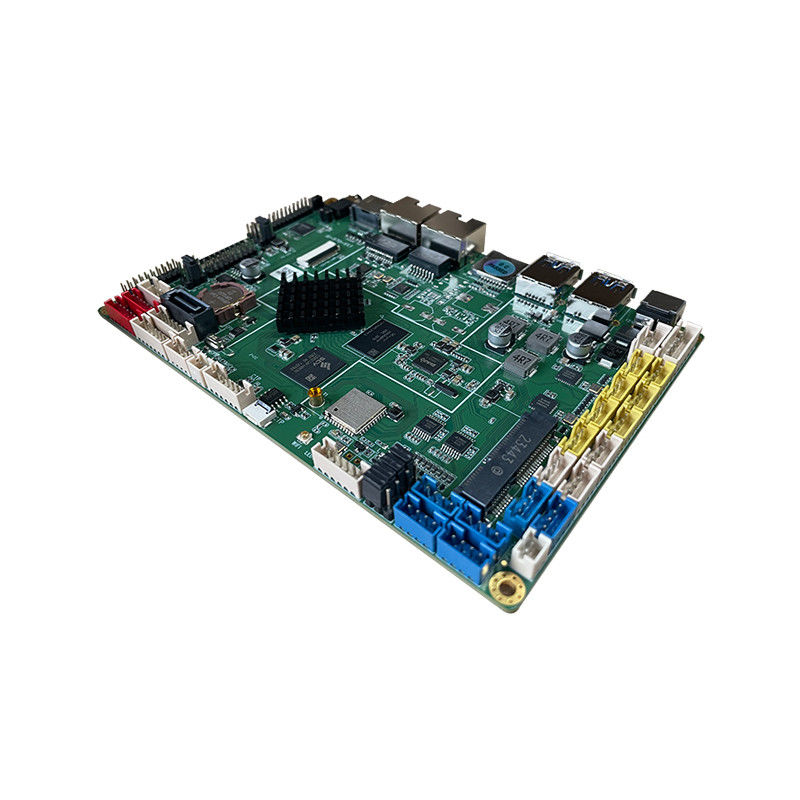

Standard 2G DDR Commercial Display Android Mainboard External HDMI IN Board

Product Description:

1.1 Scope of application

YNH-570 is an intelligent industrial control motherboard, which is widely used in intelligent industrial control products and smart display terminal products, such as industrial control host, intelligent self-service terminal, intelligent retail terminal, O2O intelligent equipment, robot equipment, advertising machine, digital signage, etc.

1.2 Product Overview

YNH-570 uses Rockchip RK3568 Quad-core processor, the chip comes with 1.0 T computing power NPU, equipped with Android 11.0 / Ubuntu 20.04 system (kernel is Linux 4.19), main frequency up to 2.0 GHz, outstanding performance, high cost performance. GPU uses Mali-G52, supports 4K 60fps H.265/H.264/VP9 video decoding, supports 1080P 100fps H.265/H.264 video encoding. Supports multi-channel video output and input, rich interfaces, and supports a variety of peripheral expansions. It is your best choice for human-computer interaction and industrial control projects.

1.3 Features

• High definition. Supports up to 4K decoding and LVDS / EDP /MIPI signal LCD display
• Multiple upgrade methods such as remote, U disk, TF card, USB cable connected to computer, etc.
• U disk, TF card configuration screen parameters, plug and play, perfect support for all sizes, all resolution displays
• Perfectly supports mainstream industry release software and industry application software, ready to use
• Perfectly supports a variety of mainstream touch screens such as infrared, optical, capacitive, resistive, etc., supports HID configuration of driver-free touch screens, and no debugging is required
• Perfectly supports the industry's mainstream USB/serial port devices, printers, card readers, password keyboards, fingerprint readers, cameras, ID card recognition, QR code scanners, etc., and provides demo test programs
• Highly integrated. With 9 USB ports, 8 serial ports, 8 IO ports, WIFI/RJ45/4G and other networking options
• Built-in PCI-E 4G module socket, supports various PCI-E 4G modules such as Yuge and Quectel to access the Internet

Features:

• Product Name: Commercial Display Android Mainboard
• DDR: Standard 2G (4G /8G Optional) LPDDR4
• EMMC: EMMC 32G (16G /64G / 128G/256G Optional)
• Warranty: 1 Year
• USB interface: 9, 1 USB3.0-OTG, 8 USB 2.0_HOST
• Speaker output: Supports Mono 4R/20W Speaker

Technical Parameters:

Applications:

The YNH 570 Commercial Display Android Mainboard is a versatile product designed for a wide range of Product Application Occasions and Scenarios in the commercial display industry. With its advanced features and specifications, this Commercial Display Control Board is ideal for various applications.

Whether it's for Digital Signage, Interactive Kiosks, Video Walls, or Menu Boards, the YNH 570 Model Number is a reliable choice. Its Place of Origin in Shenzhen ensures high quality and cutting-edge technology, while the UL Certification guarantees safety and compliance with industry standards.

With a Minimum Order Quantity of 100 units and a competitive Price range of 60~80 USD, this Commercial Signboard PCB is suitable for both small-scale projects and large-scale installations. The Packaging Details of 100pcs per box make it convenient for bulk orders, and the fast Delivery Time of 5-8 days ensures quick turnaround.

Payment Terms for the YNH 570 include T/T, providing flexibility for customers. The product's RTC Real Time Clock feature allows for precise timekeeping and timed power on and off functions, enhancing efficiency and convenience.

Equipped with HDMI IN support via an external board, Serial Ports including 8, 6 232, 1 485, and 1 DEBUG, as well as 9 USB interfaces (1 USB3.0-OTG and 8 USB 2.0-HOST), this Commercial Display Control Board offers extensive connectivity options for various peripherals.

The compact Dimensions of 148.0 * 101.5 * 1.6 mm make the YNH 570 easy to integrate into different display setups, while its robust build ensures durability in diverse environments.

In conclusion, the YNH 570 Commercial Display Android Mainboard is a reliable and feature-rich solution for a wide range of Commercial Display Control Board applications. Whether for retail stores, corporate environments, or public spaces, this product offers the performance and versatility required for modern display setups.

Customization:

Product Customization Services for the Commercial Display Android Mainboard:

Brand Name: YNH

Model Number: 570

Place of Origin: Shenzhen

Certification: UL

Minimum Order Quantity: 100

Price: 60~80 USD

Packaging Details: 100pcs per box

Delivery Time: 5-8 days

Payment Terms: T/T

EMMC: EMMC 32G (16G / 64G / 128G / 256G Optional)

Network support: Support 4G, Connect PCIE 4G Module

Warranty: 1 Year

HDMI IN: Supported By External HDMI IN Board

RTC Real Time Clock: The Battery Supports Time Memory For 3 Years And Supports Timed Power On And Off

Support and Services:

The Product Technical Support and Services for the Commercial Display Android Mainboard product include:

- Software installation and updates

- Troubleshooting and diagnostics

- Firmware upgrades

- Compatibility testing

- Technical consultation

- Remote support services

- Warranty coverage and repair services
