Standard 2G 4G 8G Optional LPDDR4 Commercial Mainboard Android 11.0 Ubuntu20.04

Product Description:

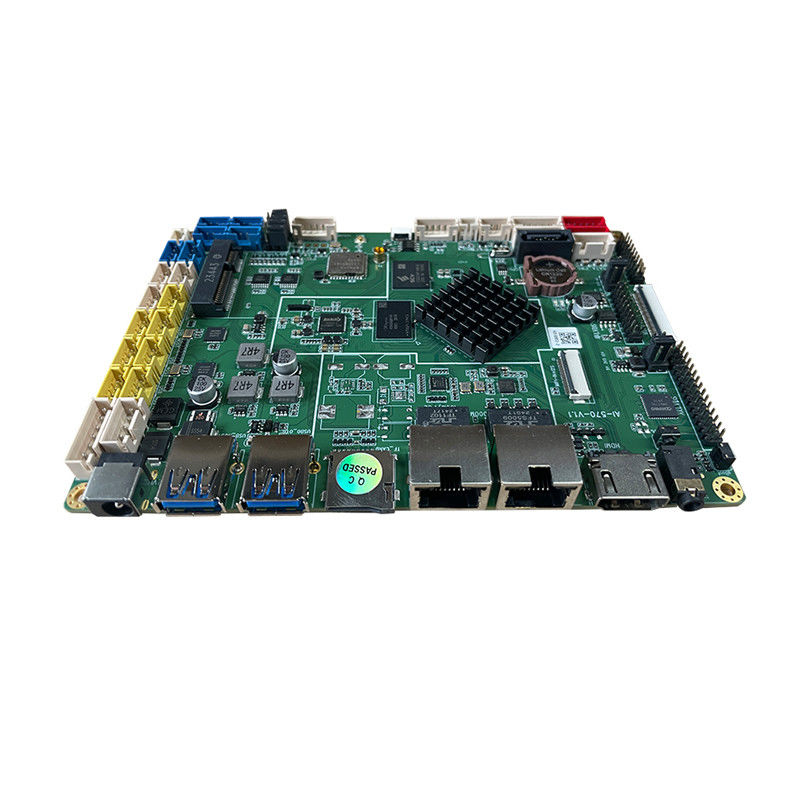

YNH-570 is an intelligent industrial control motherboard, which is widely used in intelligent industrial control products and smart display terminal products, such as industrial control host, intelligent self-service terminal, intelligent retail terminal, O2O intelligent equipment, robot equipment, advertising machine, digital signage, etc.

YNH-570 uses Rockchip RK3568 Quad-core processor, the chip comes with 1.0 T computing power NPU, equipped with Android11.0 / Ubuntu20.04 system (kernel is Linux 4.19), main frequency up to 2.0 GHz, outstanding performance, high cost performance. GPU uses Mali-G52, supports 4K 60fps H.265/H.264/VP9 video decoding, supports 1080P 100fps H.265/H.264 video encoding. Supports multi-channel video output and input, rich interfaces, and supports a variety of peripheral expansions. It is your best choice for human-computer interaction and industrial control projects.

• High definition. Supports up to 4K decoding and LVDS / EDP / MIPI signal LCD display
• Multiple upgrade methods such as remote, U disk, TF card, USB cable connected to computer, etc.
• U disk, TF card configuration screen parameters, plug and play, perfect support for all sizes, all resolution displays
• Perfectly supports mainstream industry release software and industry application software, ready to use
• Perfectly supports a variety of mainstream touch screens such as infrared, optical, capacitive, resistive, etc., supports HID configuration of driver-free touch screens, and no debugging is required.
• Perfectly supports the industry's mainstream USB/serial port devices, printers, card readers, password keyboards, fingerprint readers, cameras, ID card recognition, QR code scanners, etc., and provides demo test programs.
• Highly integrated. With 9 USB ports, 8 serial ports, 8 IO ports, WIFI/RJ45/4G and other networking options.
• Built-in PCI-E 4G module socket, supports various PCI-E 4G modules such as Yuge and Quectel to access the Internet.

Features:

• Product Name: Commercial Display Android Mainboard
• Operating System: Android 11.0/ Ubuntu20.04 ( Kernel Is Linux4.19)
• DDR: Standard 2G (4G /8G Optional) LPDDR4
• CPU: RK3568 , Quad-core, 2.0 GHz
• Decoding resolution: Support Up To 4K
• RTC Real Time Clock: The Battery Supports Time Memory For 3 Years And Supports Timed Power On And Off

Technical Parameters:

Applications:

The YNH 570 Commercial Display Android Mainboard is a versatile product that can be used in a variety of Product Application Occasions and Scenarios:

1. Commercial Display Control Board: The YNH 570 Mainboard is designed for commercial display applications, making it ideal for digital signage, interactive kiosks, and advertising displays. Its RK3568 Quad-core CPU ensures smooth performance, while the EMMC 32G storage (with optional upgrades) provides ample space for multimedia content.

2. Commercial Signboard PCB: With its UL certification and reliable performance, the YNH 570 Mainboard is perfect for use in commercial signboards. The DDR options (2G standard, with upgrades available) and RTC Real Time Clock support ensure that your signboard operates efficiently and accurately.

3. Commercial Mainboard for LCD Displays: The YNH 570 Mainboard's MIPI LCD output makes it a great choice for driving LCD displays in commercial settings. Whether you need to showcase product information, advertisements, or interactive content, this mainboard delivers high-quality visuals with ease.

Manufactured in Shenzhen, the YNH 570 Mainboard meets high quality standards and is UL certified for safety and reliability. It has a Minimum Order Quantity of 100 units and is priced competitively between 60 to 80 USD per unit. Each mainboard comes in packaging details of 100pcs per box, with a delivery time of 5-8 days upon order confirmation.

Payment Terms for the YNH 570 Mainboard are flexible, accepting T/T transactions. The mainboard features advanced specifications, including the RK3568 Quad-core CPU, EMMC storage options, DDR configurations, and RTC Real Time Clock support for timed power management.

Overall, the YNH 570 Commercial Display Android Mainboard is a reliable and feature-rich solution for various commercial applications, offering flexibility, performance, and durability.

Customization:

Product Customization Services for the Commercial Display Android Mainboard:

- Brand Name: YNH

- Model Number: 570

- Place of Origin: Shenzhen

- Certification: UL

- Minimum Order Quantity: 100

- Price: 60~80 USD

- Packaging Details: 100pcs per box

- Delivery Time: 5-8 days

- Payment Terms: T/T

- Serial Port: 8, 6 232 (COM9 Can Be TTL, COM0 Can Be 485), 1 485, 1 DEBUG

- DDR: Standard 2G (4G /8G Optional) LPDDR4

- Speaker output: Supports Mono 4R/ 20W Speaker

- HDMI IN: Supported By External HDMI IN Board

- EMMC: EMMC 32G (16G /64G / 128G/256G Optional)

Keywords: Commercial Display Control Board, Commercial Mainboard, Commercial Signboard PCB

Support and Services:

The Product Technical Support and Services for the Commercial Display Android Mainboard product include:

- Software updates and patches to ensure optimal performance and security

- Troubleshooting assistance for any software-related issues

- Guidance on device setup and configuration

- Remote diagnostics and troubleshooting

- Warranty support for hardware-related problems

- Consultation services for custom software development or integration
