Standard 2G LPDDR4 / LPDDR4x POS Mainboard Bluetooth 5.0 And 4G Network

Product Description:

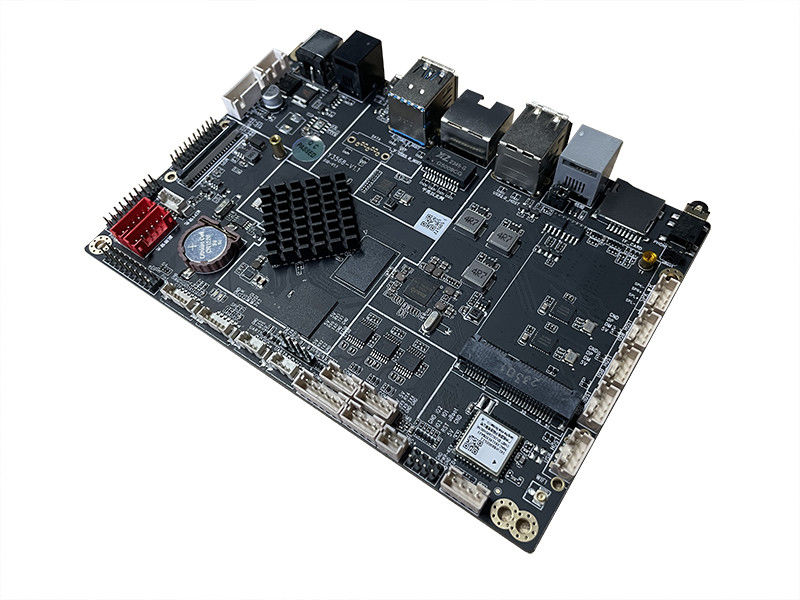

YNH-510 is an intelligent POS machine motherboard, suitable for: POS machines, AI scales, and other equipment.

YNH-510 uses Rockchip RK3568 quad-core processor. The chip comes with 1.0 T computing power NPU, equipped with Android 11.0 / Ubuntu 20.04 system (kernel is Linux 4.19), with a main frequency of up to 2.0GHz, delivering outstanding performance and high cost efficiency. Its GPU uses Mali-G52, supporting 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/H.264 video encoding. The motherboard supports multi-channel video output and input, providing rich interfaces and compatibility with various peripheral expansions. It is a top choice for POS machines, AI scales, and other industries.

• High-definition support: Up to 4K decoding and compatibility with LVDS screens, MIPI screens, and EDP screens.
• Multiple upgrade methods: Remote, U disk, TF card, USB cable connected to a computer, etc.
• U disk & TF card configuration: Plug and play for screen parameters, perfect compatibility with all sizes and resolutions of displays.
• Mainstream software support: Perfect compatibility with industry release software and application software for immediate use.
• Touch screen support: Compatibility with various touch screen types such as infrared, optical, capacitive, resistive, and HID configuration for driver-free touch screens.
• Peripheral device support: Compatibility with USB/serial port devices, printers, card readers, password keyboards, fingerprint readers, cameras, ID card recognition, QR code scanners, etc., with demo test programs provided.
• High integration: Features 9 USB ports, 7 serial ports, 3 IO ports, WIFI/RJ45/4G, and other networking options.
• Built-in PCI-E 4G module socket: Support for various PCI-E 4G modules, like Yuge and Quectel, for internet access.

Features:

• Product Name: POS Mainboard
• DDR: Standard 2G (4G/ 8G Optional) LPDDR4/LPDDR4x
• RTC Real Time Clock: Support
• USB interface: 9: 1 USB3.0 -HOST , 8 USB 2.0 _HOST ( Micro-USB For OTG )
• Network support: Ethernet, 10M/100M / 1000M,2.4G And 5G Dual-band WiFi 6 Module , Bluetooth 5.0,4G , Connect To PCIE 4G Module
• EMMC: EMMC 16G ( 8G /32G/64G / 128G Optional )

Technical Parameters:

Applications:

The YNH 510 POS Mainboard, proudly made in China, is a versatile and reliable product suitable for various Product Application Occasions and Scenarios. With certifications such as CE and ISO9001, this POS Mainboard guarantees quality and performance.

Designed for businesses that require a Sales Tracker Display, Transaction Logging Board, or Point of Sale Board, the YNH 510 POS Mainboard is ideal for retail stores, restaurants, cafes, and other establishments. Its compatibility with various software and hardware systems makes it a valuable asset for streamlining operations.

Featuring a standard 2G DDR (with options for 4G or 8G LPDDR4/LPDDR4x), the YNH 510 POS Mainboard ensures smooth and efficient multitasking capabilities. The support for RTC Real Time Clock enables accurate time tracking for transaction logging purposes.

System upgrades are hassle-free with the YNH 510 POS Mainboard, as it supports USB, U Disk, and Network upgrades. This feature allows businesses to stay up-to-date with the latest software enhancements and security updates.

Equipped with an RK3568 Quad-core CPU running at 2.0 GHz, the YNH 510 POS Mainboard delivers high performance for demanding POS applications. Its network support includes Ethernet, 10M/100M/1000M, 2.4G and 5G Dual-band WiFi 6 Module, Bluetooth 5.0, and 4G connectivity, making it versatile for various connectivity needs.

Businesses can trust the YNH 510 POS Mainboard for its reliability, ease of use, and quick delivery time of 5-8 working days. The minimum order quantity of 100 units ensures that businesses can easily scale their POS systems according to their needs.

With flexible payment terms including T/T, AliPay, and PayPal, businesses can acquire the YNH 510 POS Mainboard with convenience. The product is securely packaged in a carton box to ensure safe transportation and delivery to customers.
